EVO's Upgraded Version

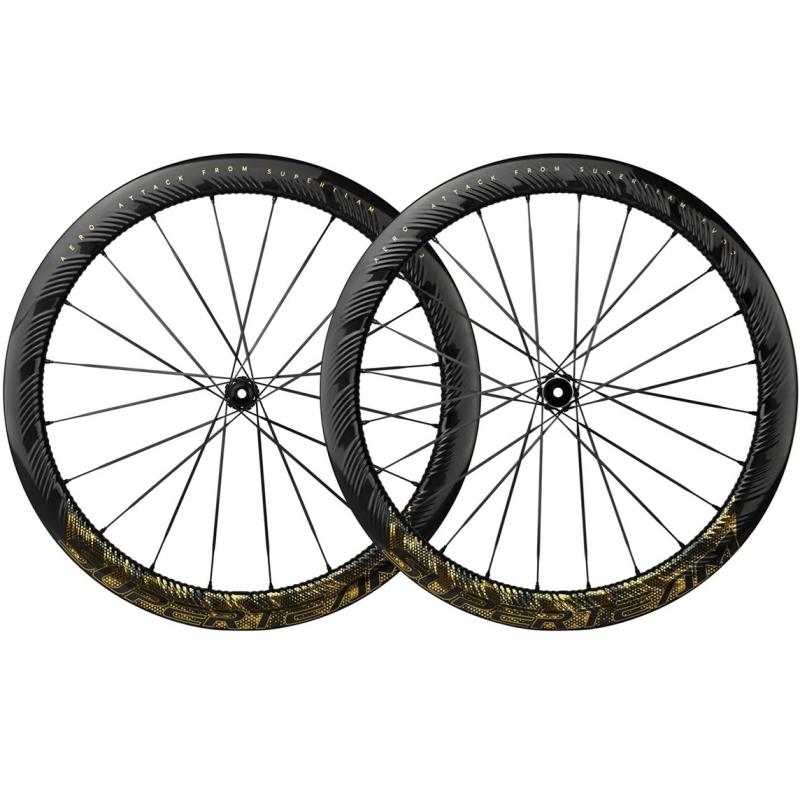

EVO II is an enhanced version of the EVO series launched by Superteam. Carbon EVO II comprises DT Swiss hubs, 4.0mm carbon spokes, and feather-shaped rims. It allows riders to ride more smoothly, faster, and with less air resistance.
DT Swiss Custom Hubs
DT Swiss Custom Hubs uses high-precision manufacturing technology to ensure parts' fitting accuracy and durability, reducing the risk of wear and failure. DT Swiss Custom Hubs has many engagement points, usually 18, 36, 54, or even higher tooth numbers. This model uses 36 teeth, which makes the engagement angle when pedaling smaller and responds almost instantly, improving riding efficiency and Maneuverability. The ratchet system provides a smooth and quiet free-gliding experience when riding at high speeds.
Feather Pattern Shape
The rims of S-ALL Carbon EVO II adopt a feather pattern shape. The special texture can increase the structural strength and rigidity of the rim to a certain extent, help disperse pressure, and reduce the stress concentration points of the rim during use. The feather pattern design can reduce air resistance, improve the aerodynamic performance of the wheelset, and make riding more efficient, especially at high speeds.
4.0mm Width Carbon Spokes
If your main focus is lightweight and high-speed riding efficiency, such as road racing and long-distance riding, this S-ALL Carbon EVO II is perfect for you. It uses 4.0mm carbon fiber spokes. 4.0mm spokes are relatively thin and lighter, making them suitable for cyclists who pursue extreme lightweight, especially when climbing hills and riding long distances. Moreover, thinner spokes have smaller cross-sectional areas and relatively lower air resistance, which helps improve efficiency during high-speed riding.
Spokes
Spokes count: 20/24
Spoke type: 4.0mm carbon spokes
Spoke Tention: 130-150kgf
Rim
Wheel size: 700c
Tire compatibility: Clincher / Tubeless
Bead type: hooked
Rim depth: 50mm
Inner width: 23mm
Outer width: 30mm
Hub
Bearing: Ceramic bearings
Freehub type: DT Swiss Ratchet Structure 36T
Freehub compatibility: Shimano HG 9-12s / SRAM XDR
For center lock rotors
For front 12x100mm, rear 12x142mm axle
Other
Weight (Pair): 1,385g
Rider weight limit: 120kg
Tire pressure limit: 130psi / 8.6bar
Recommended tire sizes: 700 x 28c - 34c
Certification: UCI Proved / SGS Proved
MSRP: NTD$ 48,000 (Changed to XDR freehub additional markup NTD$ 1,500)
