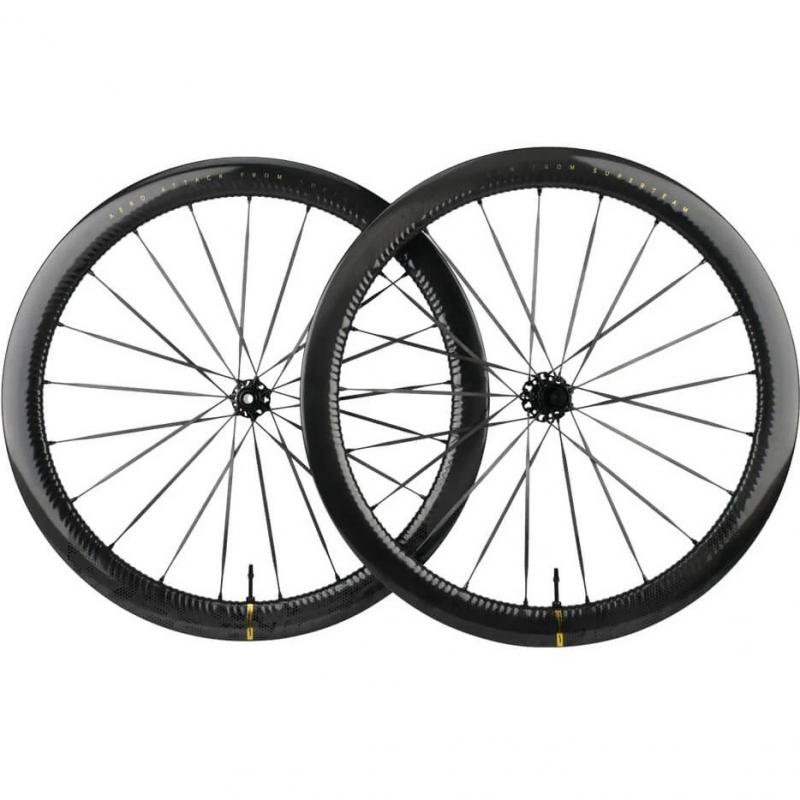

Featuring a holeless tapeless tubeless rim, updated 5mm carbon spokes, and precision ratcheting hubs for maximum performance, maximum power, and precision, Ideal for serious riders looking for a professional edge.
Holeless Tapeless Tubeless Rim
The first holeless tubeless rim offers an innovative solution to the long-standing problem of taped tubeless rims. The design of the holeless tubeless rim can reduce tire deformation and improve tire stability and durability. This helps reduce tire wear, extend tire life, and enhance riding safety.
Water Drop Pattern Shape
The unique water drop pattern shape is designed based on the wings of a peregrine falcon. This reduces the resistance to wind and allows the airflow to pass through more smoothly.
5mm Width Carbon Spokes
The EVO series uses 5mm carbon spokes, which are by far the widest in the world. Wide carbon spokes have two main advantages: 1. Wide carbon spokes have a larger area in the transverse direction, which makes them more stable when bearing lateral forces. 2. Wide carbon spokes have a larger load-bearing area, so they can disperse more vibration and impact forces, thereby improving ride comfort. The 5mm spokes are also just 0.9mm thick and weigh approximately 3.4g each, further reducing climbing and aerodynamic drag.
Light, Strong And Fast In One
Lighter: New optimized carbon cloth stacking method, lighter weight.
Stronger: Original holeless tapeless tubeless rim strength increased by 10%.
Faster: Pneumatic water ripple rim and ratchet structure fast response flower drum, fast speed up.
Spokes
Spokes count: 21/21
Spoke type: 5mm carbon spokes
Spoke Tention: 130-150kgf
Rim
Wheel size: 700c
Tire compatibility: Clincher / Tubeless
Bead type: hooked
Rim depth: 45mm
Inner width: 21mm
Outer width: 28mm
Hub
Bearing: Ceramic bearings
Freehub type: Ratchet Structure 36T
Freehub compatibility: Shimano HG 9-12s / SRAM XDR
For center lock rotors
For front 12x100mm, rear 12x142mm axle
Other
Weight (Pair): 1,390g
Rider weight limit: 120kg
Tire pressure limit: 130psi / 8.6bar
Recommended tire sizes: 700 x 28c - 34c
Certification: UCI Proved / SGS Proved
MSRP: NTD$ 42,000 (Changed to XDR freehub additional markup NTD$ 500)
