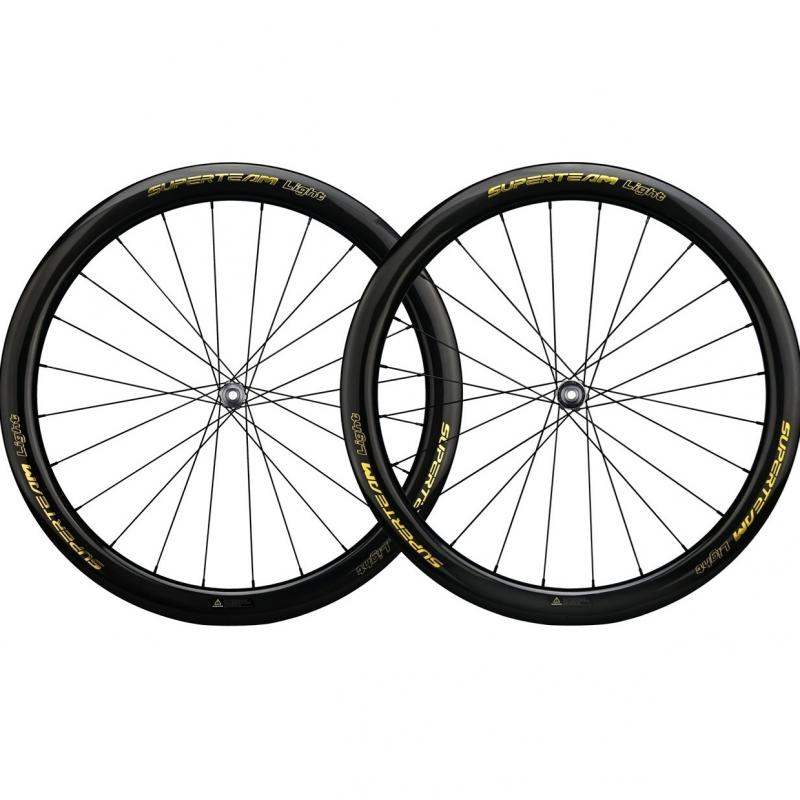

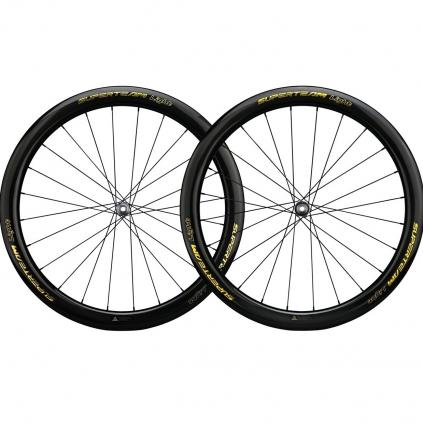

New carbon rims: T1000 grade carbon cloth reinforcement.
Light flower drum: 7075 aluminum alloy.
Light radiation strip: A single spoke weights only 4.9g.
New Lightweighting
With Seda Wing 21 Light Series steel spokes only 1250g a pair. Weight reduction of about 300g compared to normal steel spokes. Equivalent about TPU folding inner tube weight reduction.
Rim reinforced with 20% T1000 grade carbon cloth at key locations
The main body adopts 50% T800 + 30% T700 grade carbon cloth as the main structural material.
Single rim weight is light to 380g
The normal rim weights about 450g. Reduced by 70g. It's equivalent to reducing the weight of an egg.
Lightweight Flower Drum
The drum shell and tower used 7075 aluminum alloy, compared to 6 series aluminum, the material weight was lighter than steel aiuminum and the durability was higher.
Precision design of cranoidal structures
Prefectly paired with cranoidal structure for efficient transmission. Achieve a faster bite rate and improve the response rate of each foot touch.
Light Radiation Strip
Lightweight Seda Wing 21 spokes, different length single weight of 4.7 - 4.9g.
Spokes
Spokes count: 24/24
Spoke type: Seda Wing 21 steel spokes
Rim
Wheel size: 700c
Tire compatibility: Clincher / Tubeless
Bead type: hooked
Rim depth: 50mm
Inner width: 21.5mm
Outer width: 28.5mm
Hub
Freehub type: DY57 Ratchet Flower Drum
Freehub compatibility: Shimano HG 9-12s / SRAM XDR
For center lock rotors
For front 12x100mm, rear 12x142mm axle
Other
Weight (Pair): 1,250g ± 30g
Rider weight limit: 115kg
Tire pressure limit: 130psi / 8.6bar
Recommended tire sizes: 700 x 25c - 32c
MSRP: NTD$ 17,500 (Changed to XDR freehub additional markup NTD$ 500)
